Arrim ONE:
World's First Professional AR Measuring Device

Buy

The future of Measurement

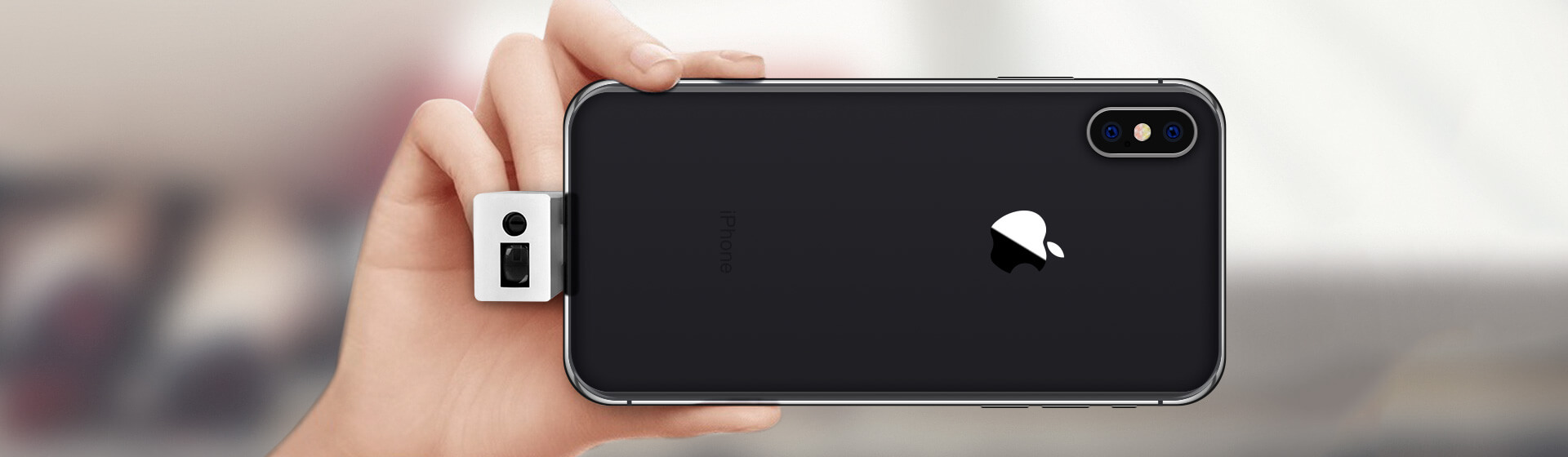

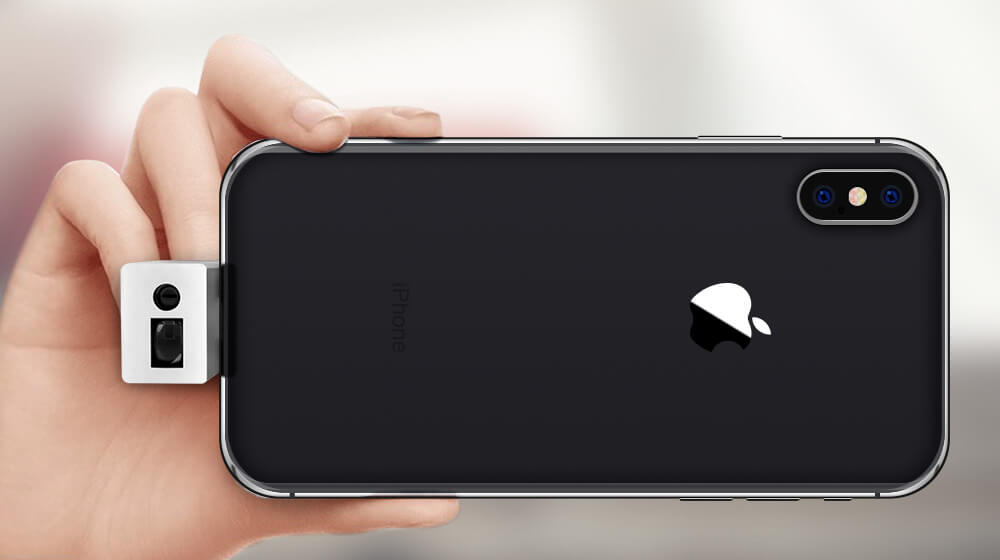

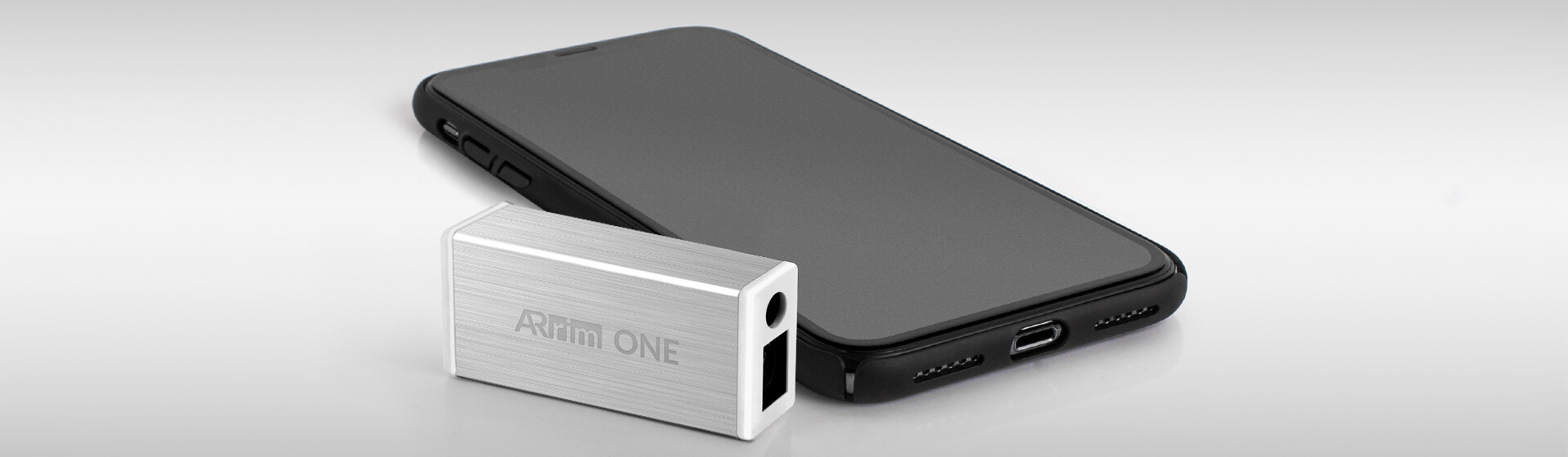

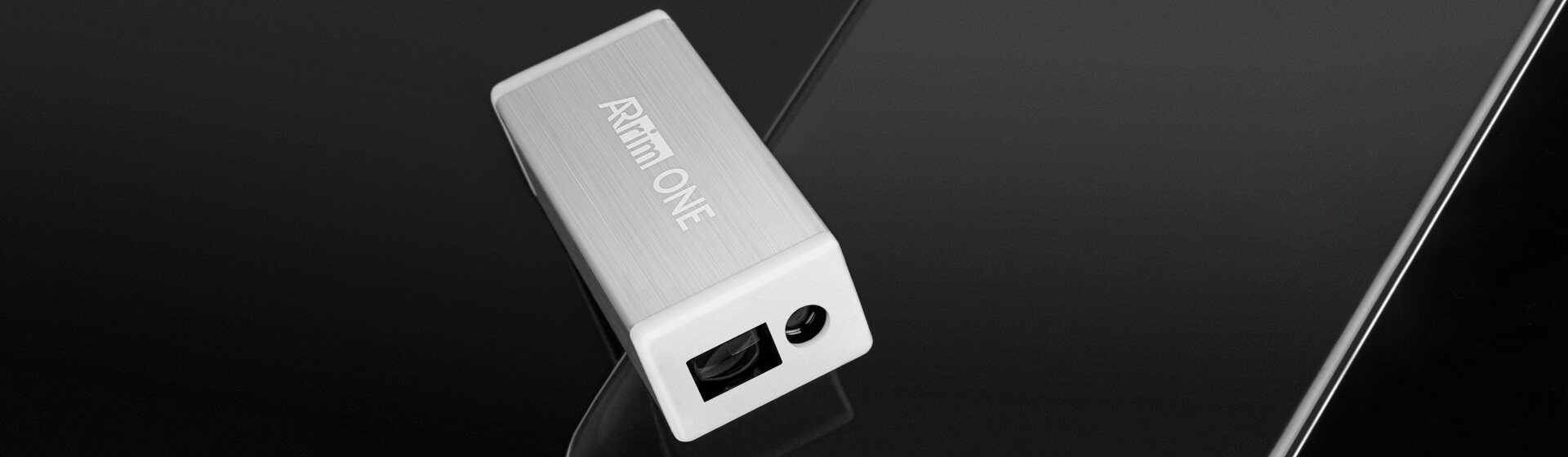

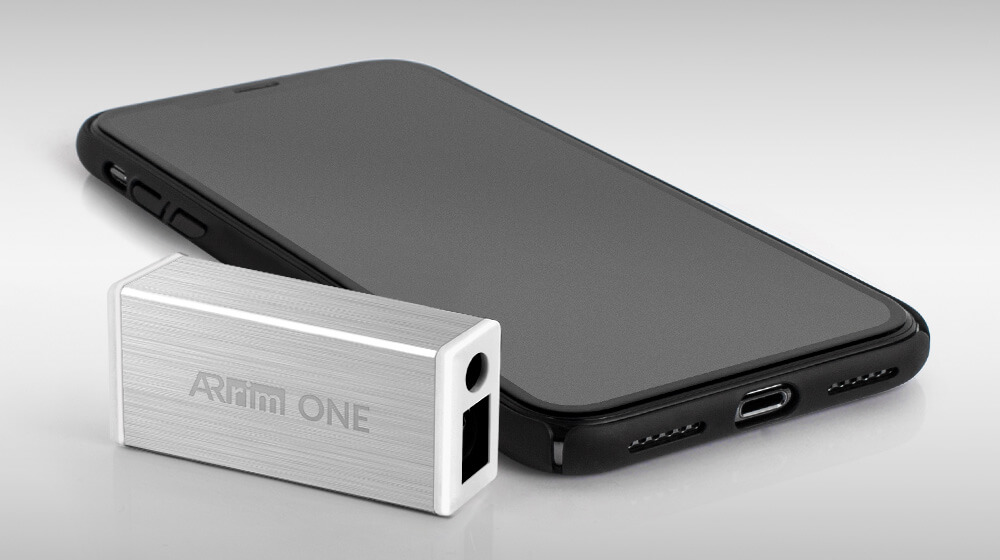

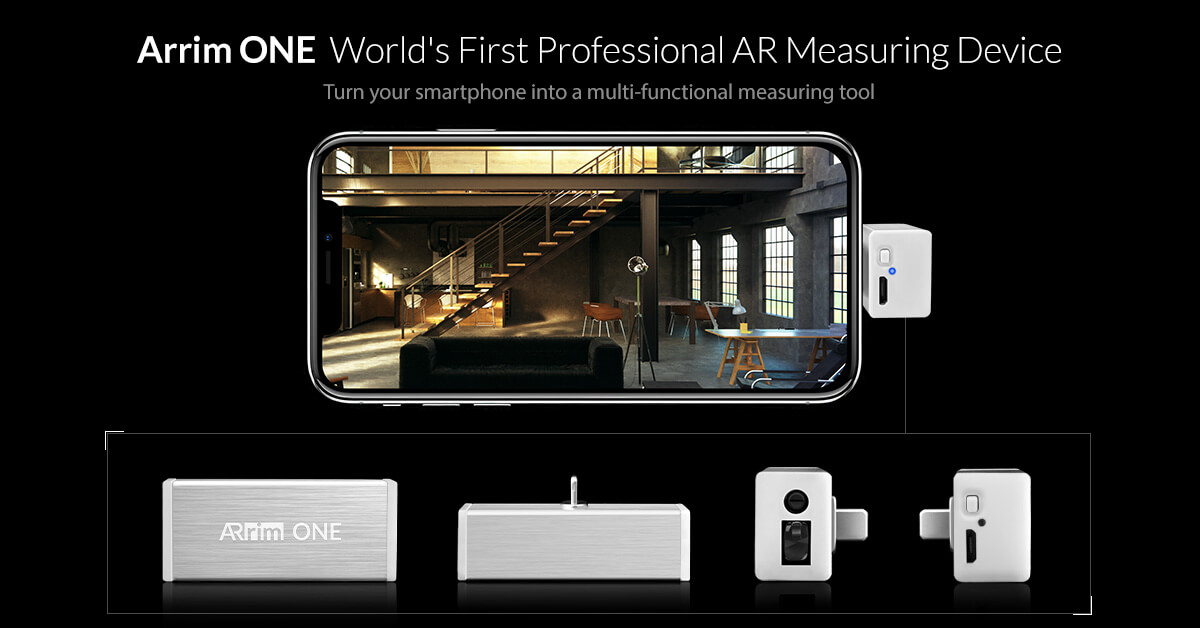

ARRIM ONE is the first AR multi-functional measuring device that actually works. Simply attach ARRIM ONE to your smartphone. It immediately transforms your phone into a powerful AR measuring device.

Multi – Functional

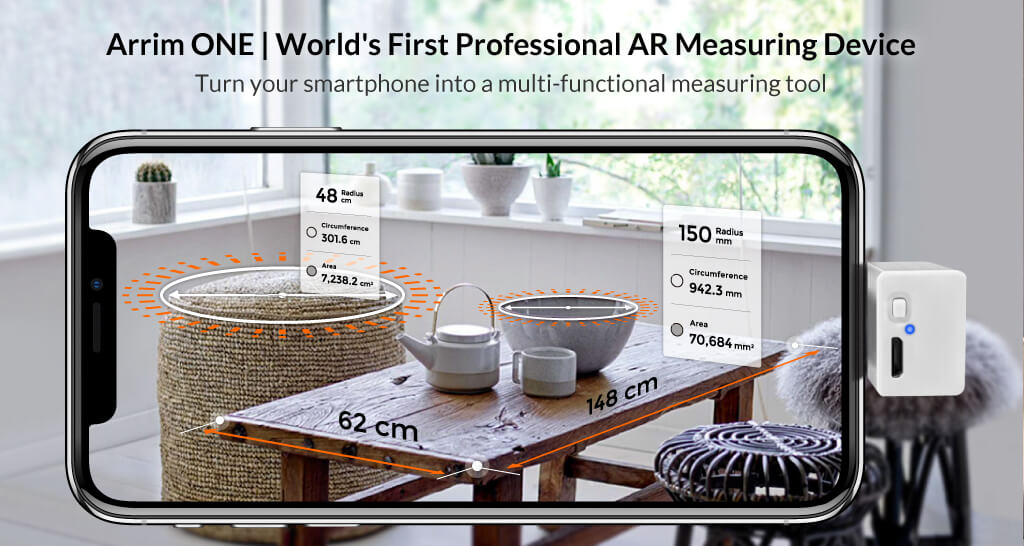

Arrim ONE is truly multi-functional. It can be used to measure the dimensions of straight lines, circles, angles and curves. It is also a leveling and dividing tool.

Multi – Functional

Arrim ONE is truly multi-functional. It can be used to measure the dimensions of straight lines, circles, angles and curves. It is also a leveling and dividing tool.

ACCURACY

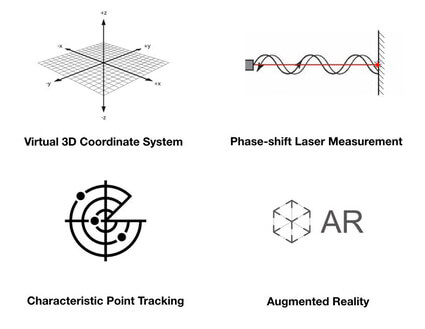

To achieve high level of accuracy, ARRIM ONE uses a series of sophisticated technologies, including virtual 3D coordinate system, Phase-shift laser measurement, Characteristic point tracking, Augmented Reality, and our patented algorithm.

Function Max Range Accuracy Things may affect accuracy
Distance Mode 100 ft
(indoor)
1/8”
  • glass, water, fabric, black color background, etc.
3D Photo 600 ft
indoor / outdoor
+/- 1%
  • insufficient lighting
  • the target is not on the plane
  • incorrect plane definition
Live Measurement 200 ft
(indoor)
+/- 3%
  • insufficient lighting
  • shaking hand, low visibility of point in distance
  • move too fast /far
  • complete white wall no objects for reference etc.
Function Distance Mode
Max Range 100 ft (indoor)
Accuracy 1/8”
Things may affect accuracy
  • glass, water, fabric, black color background, etc.
Function 3D Photo
Max Range 600 ft indoor/outdoor
Accuracy +/- 1%
Things may affect accuracy
  • insufficient lighting
  • the target is not on the plane
  • incorrect plane definition
Function Live Measurement
Max Range 200 ft (indoor)
Accuracy +/- 3%
Things may affect accuracy
  • insufficient lighting
  • shaking hand, low visibility of point in distance
  • move too fast /far
  • complete white wall no objects for reference etc.

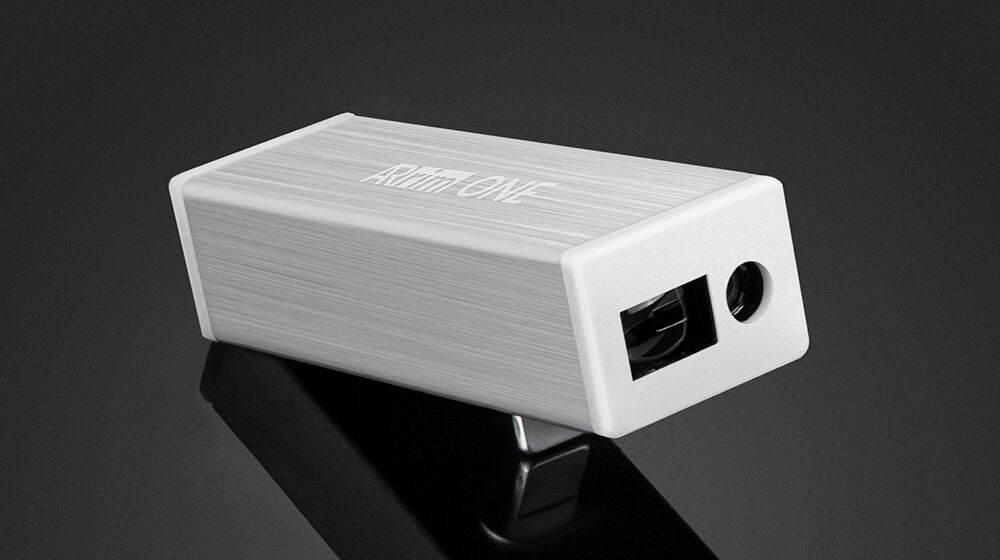

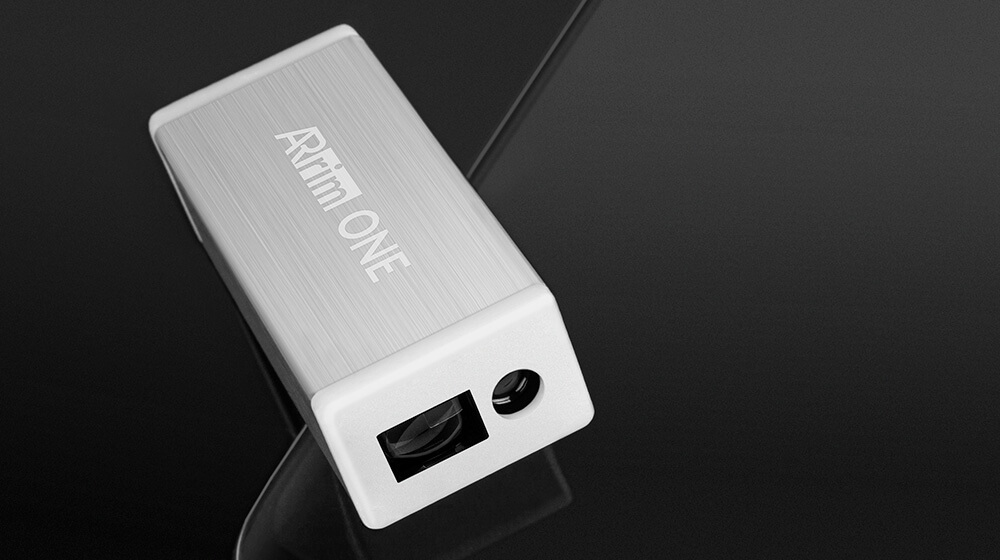

Specification

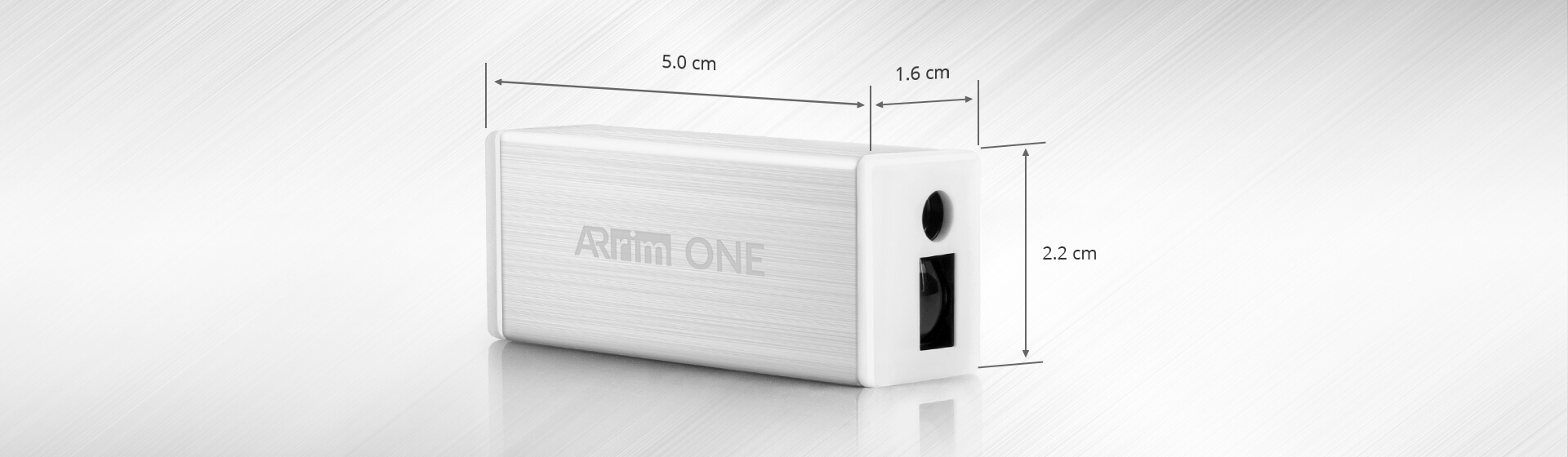

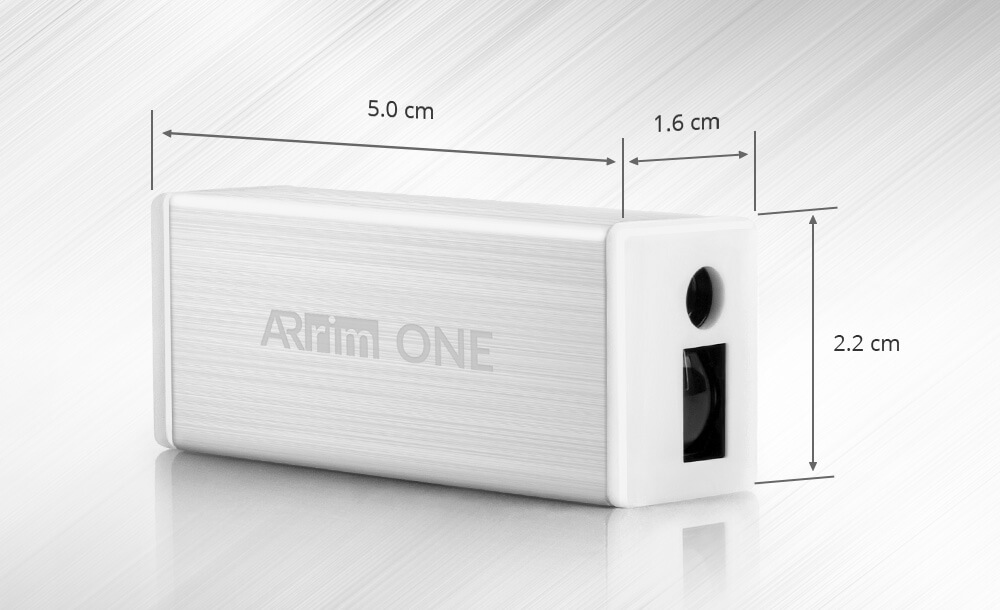

Dimension: 5 X 3 X 1.5 cm
Weight: 35 grams
Laser Module: FDA approved 635 nanometre Class II laser module with 40 meters measure range
Bluetooth: BLE 4.0
Battery: Built-In 100 mAh Lithium-Ion battery provides enough power for 1000 times measurement with a single charge
Charging Voltage: 5 V

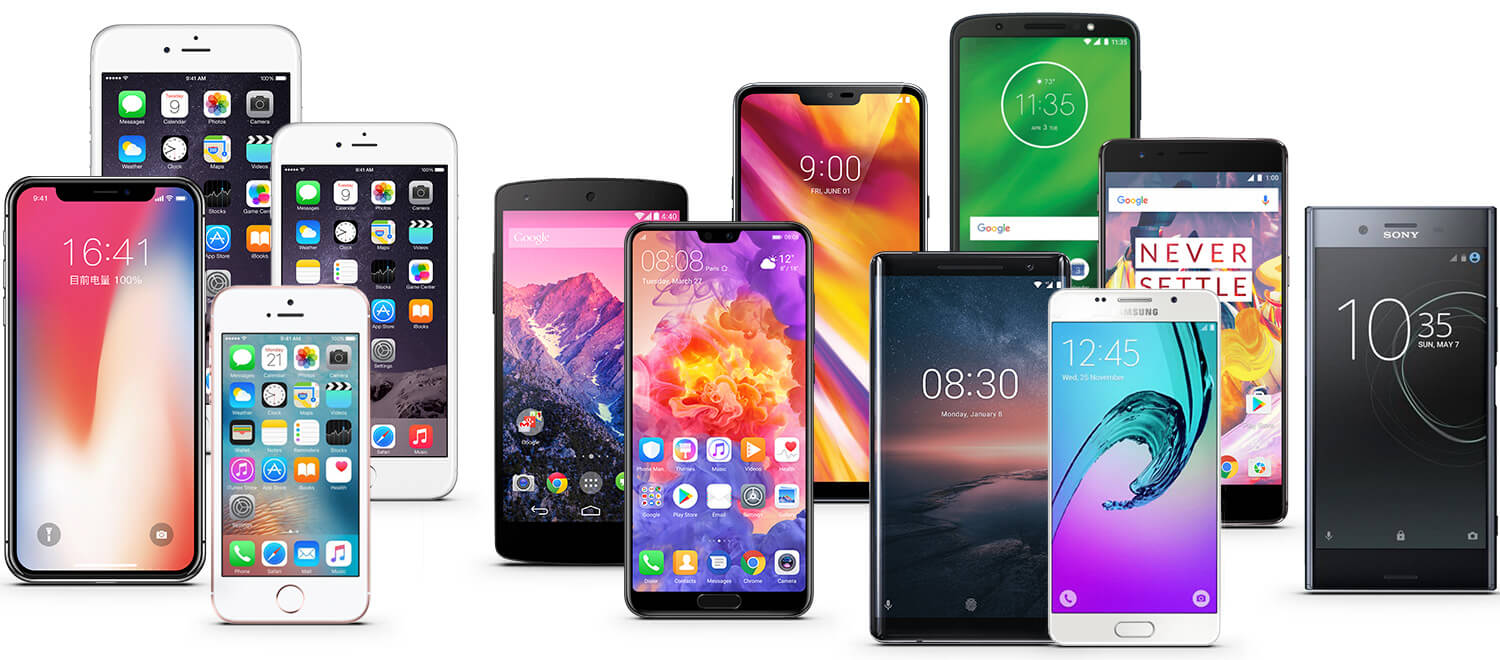

Compatibility

iOS requires:
  · Devices listed in below chart
  · iOS 11.0 or later

Android requires:
  · Devices listed in below chart
  · Android 7.0 or later (some models require newer versions as noted below)
  · Device that originally shipped with the Google Play Store
  · Play Store requires internet access in order to update ARCore

Manufacturer Model Notes
AppleiPhone SE
iPhone 6S and 6S Plus
iPhone 7 and 7 Plus
iPhone 8 and 8 Plus
iPhone X
iPhone Xr
iPhone Xs and Xs Max
iPad (5th and 6th Generation)
9.7-in. iPad Pro
10.5-in. iPad Pro
11-in. iPad Pro
12.9-in. iPad Pro (All generations)
AsusROG Phone, ROG Phone II
Zenfone AR
Zenfone ARES
GoogleNexus 5XRequires Android 8.0 or later
Nexus 6PRequires Android 8.0 or later
Pixel, Pixel XL
Pixel 2, Pixel 2 XL
Pixel 3, Pixel 3 XL
Pixel 3a, Pixel 3a XL
HMD GlobalNokia 6 (2018)Also known as Nokia 6.1
Nokia 6.1 Plus
Nokia 7 Plus
Nokia 7.1
Nokia 8Requires Android 8.0 or later
Nokia 8 Sirocco
Nokia 8.1
HuaweiHonor 10
Honor View 10 Lite
Honor V20
Mate 20 Lite, Mate 20, Mate 20 Pro, Mate 20 X
Nova 3
Nova 4
P20, P20 Pro
P30, P30 Pro
Porsche Design Mate RS, Porsche Design Mate 20 RS
LGG6Requires Android 8.0 or later
G7 Fit, G7 OneRequires Android 8.0 or later
G7 ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
G8 ThinQ, G8S ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
Q8
style2ARCore uses the wide angle fixed focus rear facing camera for AR tracking.
Stylo 5
V30, V30+, V30+ JOJO, LG Signature Edition 2017Requires Android 8.0 or later
ARCore uses the wide angle fixed focus rear camera for AR tracking
V35 ThinQ, LG Signature Edition 2018ARCore uses the wide angle fixed focus rear camera for AR tracking
V40 ThinQARCore uses the wide angle fixed focus rear camera for AR tracking
V50 ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
MotorolaMoto G6, Moto G6 Plus
Moto G7, Moto G7 Plus, Moto G7 Power, Moto G7 Play
Moto One, Moto One Action, Moto One Power, Moto One Zoom
Moto X4Requires Android 8.0 or later
Moto Z2 Force
Moto Z3, Moto Z3 Play
Moto Z4
OnePlusOnePlus 3TRequires Android 8.0 or later
OnePlus 5, OnePlus 5T
OnePlus 6, OnePlus 6T
OnePlus 7, OnePlus 7 Pro, OnePlus 7 Pro 5G
SamsungGalaxy A3 (2017)Requires Android 8.0 or later
Galaxy A5 (2017)
Galaxy A7 (2017)
Galaxy A8+ (2018)
Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy A60, Galaxy A70, Galaxy A80, Galaxy A90 5G
Galaxy Note 8
Galaxy Note 9
Galaxy Note10, Galaxy Note10+
Galaxy S8, Galaxy S8+
Galaxy S9, Galaxy S9+
Galaxy S10e, Galaxy S10, Galaxy S10+, Galaxy S10 5G
Galaxy Tab S3ARCore always runs with auto focus mode enabled on the rear facing camera.
Galaxy Tab S4, Galaxy Tab S5e, Galaxy Tab S6
SonyXperia XZ PremiumRequires Android 8.0 or later
Xperia XZ1, Xperia XZ1 CompactRequires Android 8.0 or later
Xperia XZ2, Xperia XZ2 Compact, Xperia XZ2 PremiumRequires Android 8.0 or later with software update after Aug 2018 (security patch level 2018-08-05 or later)
Xperia XZ3
Xperia 1
VivoNEX S
NEX Dual Display Edition
XiaomiMi 8, Mi 8 SE
Mi 9, Mi 9 SE
Mi A3
Mi Mix 2S
Mi Mix 3
Pocophone F1
Redmi K20, Redmi K20 Pro
Redmi Note 7, Redmi Note 7 Pro
Model Notes
Apple
iPhone SE
iPhone 6S and 6S Plus
iPhone 7 and 7 Plus
iPhone 8 and 8 Plus
iPhone X
iPhone Xr
iPhone Xs and Xs Max
iPad (5th and 6th Generation)
9.7-in. iPad Pro
10.5-in. iPad Pro
11-in. iPad Pro
12.9-in. iPad Pro (All generations)
Asus
ROG Phone, ROG Phone II
Zenfone AR
Zenfone ARES
Google
Nexus 5XRequires Android 8.0 or later
Nexus 6PRequires Android 8.0 or later
Pixel, Pixel XL
Pixel 2, Pixel 2 XL
Pixel 3, Pixel 3 XL
Pixel 3a, Pixel 3a XL
HMD Global
Nokia 6 (2018)Also known as Nokia 6.1
Nokia 6.1 Plus
Nokia 7 Plus
Nokia 7.1
Nokia 8Requires Android 8.0 or later
Nokia 8 Sirocco
Nokia 8.1
Huawei
Honor 10
Honor View 10 Lite
Honor V20
Mate 20 Lite, Mate 20, Mate 20 Pro, Mate 20 X
Nova 3
Nova 4
P20, P20 Pro
P30, P30 Pro
Porsche Design Mate RS, Porsche Design Mate 20 RS
LG
G6Requires Android 8.0 or later
G7 Fit, G7 OneRequires Android 8.0 or later
G7 ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
G8 ThinQ, G8S ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
Q8
style2ARCore uses the wide angle fixed focus rear facing camera for AR tracking.
Stylo 5
V30, V30+, V30+ JOJO, LG Signature Edition 2017Requires Android 8.0 or later
ARCore uses the wide angle fixed focus rear camera for AR tracking
V35 ThinQ, LG Signature Edition 2018ARCore uses the wide angle fixed focus rear camera for AR tracking
V40 ThinQARCore uses the wide angle fixed focus rear camera for AR tracking
V50 ThinQARCore uses the wide angle fixed focus rear facing camera for AR tracking.
Motorola
Moto G6, Moto G6 Plus
Moto G7, Moto G7 Plus, Moto G7 Power, Moto G7 Play
Moto One, Moto One Action, Moto One Power, Moto One Zoom
Moto X4Requires Android 8.0 or later
Moto Z2 Force
Moto Z3, Moto Z3 Play
Moto Z4
OnePlus
OnePlus 3TRequires Android 8.0 or later
OnePlus 5, OnePlus 5T
OnePlus 6, OnePlus 6T
OnePlus 7, OnePlus 7 Pro, OnePlus 7 Pro 5G
Samsung
Galaxy A3 (2017)Requires Android 8.0 or later
Galaxy A5 (2017)
Galaxy A7 (2017)
Galaxy A8+ (2018)
Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy A60, Galaxy A70, Galaxy A80, Galaxy A90 5G
Galaxy Note 8
Galaxy Note 9
Galaxy Note10, Galaxy Note10+
Galaxy S8, Galaxy S8+
Galaxy S9, Galaxy S9+
Galaxy S10e, Galaxy S10, Galaxy S10+, Galaxy S10 5G
Galaxy Tab S3ARCore always runs with auto focus mode enabled on the rear facing camera.
Galaxy Tab S4, Galaxy Tab S5e, Galaxy Tab S6
Sony
Xperia XZ PremiumRequires Android 8.0 or later
Xperia XZ1, Xperia XZ1 CompactRequires Android 8.0 or later
Xperia XZ2, Xperia XZ2 Compact, Xperia XZ2 PremiumRequires Android 8.0 or later with software update after Aug 2018 (security patch level 2018-08-05 or later)
Xperia XZ3
Xperia 1
Vivo
NEX S
NEX Dual Display Edition
Xiaomi
Mi 8, Mi 8 SE
Mi 9, Mi 9 SE
Mi A3
Mi Mix 2S
Mi Mix 3
Pocophone F1
Redmi K20, Redmi K20 Pro
Redmi Note 7, Redmi Note 7 Pro

*All phones & tablets on the website are not from the official brand, but the substitute products of the third party. The trademark of all products in the website belongs to its copyright party, and the website is only used to indicate the object to which the product is applicable. If the copyright party has any objection to the use of the website, please contact us.
